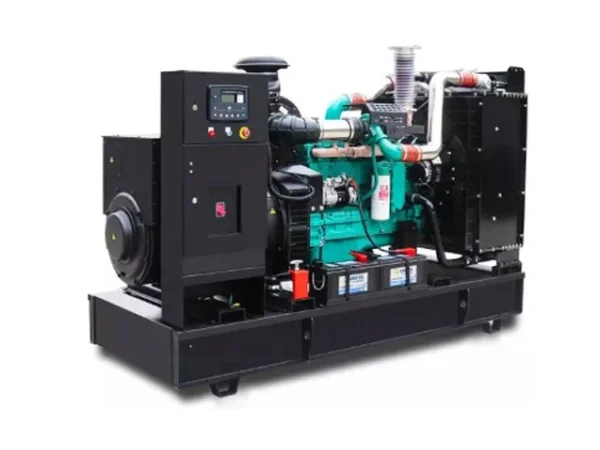

90kW Diesel Generator Powered by Cummins
Cummins Diesel Generators Feature:
·Engine and alternator shall be mounted on a same frame steel skid.
·Built-in damper for anti-vibration.
·Small size, low weight, easy to operating, installation and maintenance.
Model No.: SC125
Brand: SWT
Stroke: Four Stroke
Cooling Method: Water Cooling
Output Type: AC Three Phase
Frequency: 50Hz
Alternator Brand: Stamford, Meccalte, Leroy Somer, Faraday, Etc
Control System: Deepsea, Comap, Etc
Standard Accessories: MCCB Breaker, Silencer, Battery & Cables, Manuals
Optional Accessories: ATS, Sync Panel, Silent Type, Moving Type, Heater, Etc
Voltage: 400/230 Adjustable
Engine Model: 6BTA5.9-G2
Productivity: 7000 sets per year
Transportation: Ocean
Place of Origin: China
Supply Ability: 500 sets per month
Certificate: ISO9001
HS Code: 85021200
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Cummins Diesel Generators Feature:
·Engine and alternator shall be mounted on a same frame steel skid.
·Built-in damper for anti-vibration.·Comply with ISO8528 national standard and ISO9001 quality standard.
Cummins 6B Series Diesel Generators, 50Hz, 1500rpm, 380V-440V
|
Genset
Model |
Prime Power
kW/kVA
|
Standby Power
kW/kVA
|
Fuel Con.
l/h |
Engine Model |
Dimension Size
LxWxH (mm) |
Weight
kg |
| SC110 | 80/100 | 88/110 | 23 | 6BT5.9-G2 | 2300x850x1430 | 1400 |
| SC125 | 90/112.5 | 100/125 | 26 | 6BTA5.9-G2 | 2400x850x1430 | 1550 |
| SC138 | 100/125 | 110/137.5 | 30 | 6BTAA5.9-G2 | 2400x950x1500 | 1700 |
| SC165 | 120/150 | 132/165 | 36 | 6BTAA5.9-G12 | 2500x950x1500 | 1800 |
